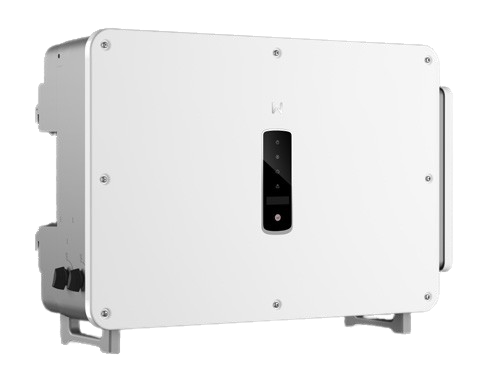

GoodWe 100kW On-Grid Inverter G3 Series – Cost-Effective, IP66 Protection, 5-Year Replacement Warranty (Extendable)

GoodWe GT Series – 100kW Three Phase Inverter

Model: GW100K-GT

Key Specifications:

Output Power: 100 k

AC Overload Capacity: Up to 110% (110 kW)

Max. Efficiency: 98.8%

European Efficiency: 98.4%

Max. DC Input Voltage: 1100V

MPPT Range: 180 ~ 1000V

Start-up Voltage: 200V

Number of MPPTs: 8

Strings per MPPT: 2

Max. Input Current per MPPT: 42A

Max. Short Circuit Current per MPPT: 52.5A

Nominal AC Grid Voltage: 220 / 380V, 230 / 400V (3L / N / PE or 3L / PE)

Nominal AC Frequency: 50 / 60 Hz

Max. Output Current: 167.1A

Ingress Protection: IP66 (outdoor installation ready)

Cooling: Smart Fan Cooling

Weight: 85 kg

Dimensions: 930 × 650 × 300 mm

Features & Benefits:

High Power Density: Lightweight design for large commercial & industrial projects.

High Yield: 8 MPPTs ensure optimal performance with different string orientations.

Superior Safety: Type II surge protection (AC & DC), optional AFCI protection.

Smart Monitoring: RS485, WiFi, LAN, and 4G/PLC options with Modbus compliance.

Durable & Reliable: Wide operating range (-30°C to +60°C) with no derating at 45°C.

Warranty:

Comes with a 5-year standard replacement warranty, extendable upon request.
