Can I add batteries to this on-grid inverter?

No. On-grid (grid-tie) inverters do not store energy. If you need backup during outages, choose a GoodWe Hybrid series inverter.

1 4

GoodWe

GoodWe 10kW On-Grid Inverter G3 Series – 98.7% Efficiency, 10-Year Replacement Warranty

Q: Is the GW10K-SDT G3 net-metering approved in Pakistan?

Yes. The SDT G3 series is AEDB-approved and compatible with Pakistan’s net-metering regulations.

Q: What does 150% DC oversizing mean?

You can connect PV capacity up to 1.5 times the inverter’s rated AC power. This helps improve energy yield in real-world conditions and reach full output earlier and later in the day.

Q: What is the max input current per MPPT?

Up to 22 A per MPPT (short-circuit current up to 27.5 A). Design strings to stay within these limits.

Rs.195,000.00 PKR

Sale Sold out

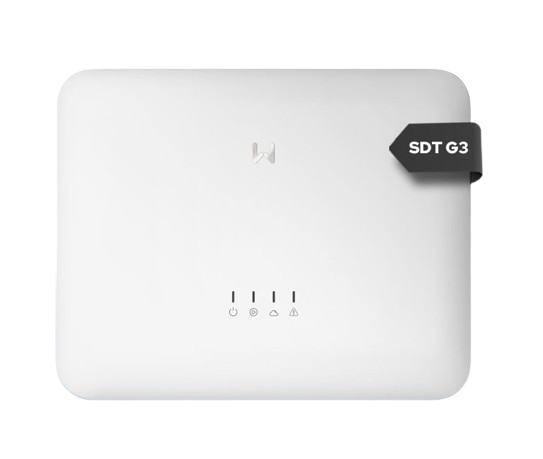

GoodWe 10kW On-Grid Inverter – GW10K-SDT G3

The GoodWe GW10K-SDT G3 is a three-phase on-grid inverter built for homes and small businesses in Pakistan. With 98.7% efficiency, IP66 protection, and smart monitoring, it delivers long-term savings and reliable performance.

✅ Key Features

✔️ High Efficiency — up to 98.7%
✔️ IP66 Protection — dust & water resistant
✔️ Smart Monitoring — WiFi / LAN / RS485
✔️ Dual MPPT — 2 MPPTs, flexible string design
✔️ DC Oversizing — up to 150%; AC overloading up to 110%
✔️ Quiet Operation — smart-fan cooling

📊 Technical Specifications

Model	GW10K-SDT G3 (EU30)
Rated AC Output Power	10,000 W (three-phase)
Max. Efficiency	98.7%
MPP Trackers / Strings per MPPT	2 / 1
Max. DC Input Voltage	1100 V
MPPT Operating Range	140 – 1000 V
Start-Up Voltage	160 V
Max. Input Current per MPPT	22 A
PV Array Oversizing	Up to 150% of inverter power
Nominal AC Voltage	3L/N/PE (230/400 V)
Max. AC Apparent Power	11 kVA (110% overloading)
Max. Output Current	≈ 15.2 A
Protection Rating	IP66 (outdoor ready)
Communication	WiFi / LAN / RS485
Cooling	Smart-fan
Warranty	10-Year Official Replacement

🔍 Applications

🏠 Homes & Villas — 10 kW systems
🏢 Shops & Small Businesses — daytime bill reduction
🏭 Small Commercial Rooftops — net-metering ready

📦 Why Buy from Solaro.pk?

🌍 Official GoodWe Distributor in Pakistan
📦 Stock in Lahore, Karachi, Islamabad, Multan, Peshawar & Sukkur
🛠 After-sales & net-metering assistance
🧾 Genuine GST invoice & official warranty

🔗 See the complete GoodWe On-Grid Inverter Price List in Pakistan (2025)

💬 Chat on WhatsApp: +92 337 0109069

✅ 10 Years Official GoodWe Replacement Warranty

❓ Frequently Asked Questions

Is the GW10K-SDT G3 net-metering approved in Pakistan?

Yes — the SDT G3 series is AEDB-approved and compatible with Pakistan’s net-metering regulations.

What does 150% DC oversizing mean?

You can connect PV capacity up to 1.5× the inverter’s rated AC power. This boosts early-morning and late-afternoon yield and helps reach full output under real-world conditions.

Can I add batteries to this inverter?

No — on-grid (grid-tie) inverters do not store energy. If you need backup, choose a GoodWe Hybrid model.

What is the max input current per MPPT?

The GW10K-SDT G3 supports up to 22 A per MPPT, suitable for modern high-current PV modules.

📑 Download Datasheet (PDF)
