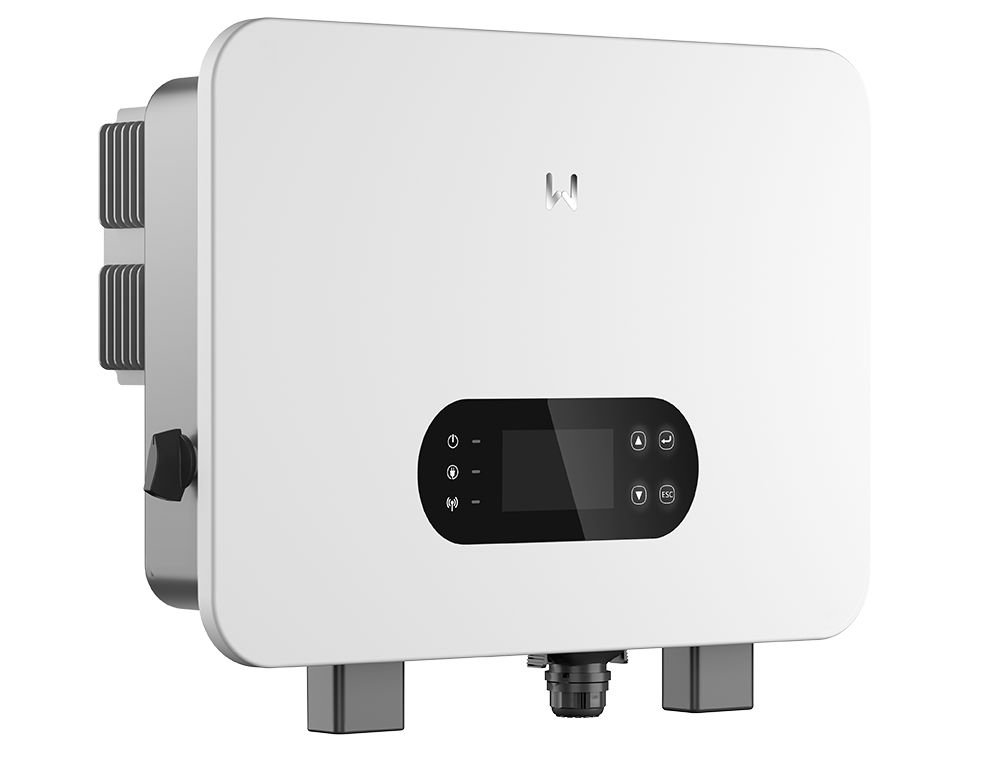

GoodWe 12kW ES Unique Hybrid Inverter – Single Phase, Latest Model, IP66 Protection, 5-Year Replacement Warranty

GoodWe ES Uniq Series – 12kW Hybrid Inverters

Single Phase

The GoodWe ES Uniq Series is designed specifically for residential hybrid solar systems, offering seamless operation in both on-grid and off-grid conditions. With support for parallel operation of up to 6 units, these inverters provide excellent scalability for larger home energy solutions.
All models feature dual MPPT and dual output to maximize energy harvesting and support critical load protection.

Key Specifications

Nominal Power Output:

Dual MPPT & Dual Output – maximize solar generation and supply critical loads.

Max. PV Input Voltage: 600V

Wide MPPT Range: 60 ~ 550V for flexible string design.

Max. DC Input Current per MPPT: up to 32A (depending on model).

Battery Compatibility: 48V Lithium-ion & Lead-acid

Max. Charging/Discharging Current: 140A (6kW), 160A (8kW), 200A (10kW), 240A (12kW).

Max. Efficiency: 97.6%

MPPT Efficiency: 99.9%

Backup Switching Time: <4ms for uninterrupted power supply.

Ingress Protection: IP66 – safe for outdoor installation.

Weight: 15.5 – 29 kg (model dependent).

Dimensions: 560 × 415 × 204 mm (6kW) | 560 × 444.5 × 226 mm (8kW – 12kW).

Features & Benefits:

Seamless Backup – automatic switchover to backup power in under 4ms.

Smart Load Control – prioritize essential loads during outages.

200% PV Oversizing – maximize solar energy yield.

Flexible Applications – supports micro-grid operation and generator input.

Scalable Design – connect up to 6 inverters in parallel.

Durable & Reliable – natural convection cooling, wide temperature tolerance (-35°C to +60°C).

Advanced Safety – Type III AC & DC surge protection, integrated DC switch, anti-islanding protection, optional AFCI.

Smart Monitoring – built-in LCD display, WiFi + LAN + Bluetooth, and full monitoring via GoodWe SEMS portal.

🔋 With dual MPPT, dual output, and strong battery compatibility, the GoodWe ES Uniq Series 12kW is the perfect choice for homeowners seeking energy independence, reliability, and long-term savings.
