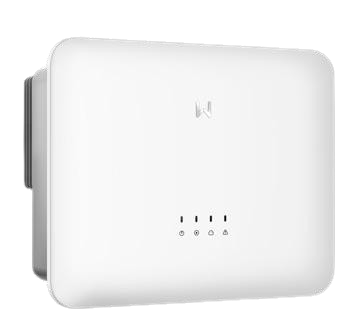

GoodWe 50kW On-Grid Inverter – SDT G3 Series

⚡ High-Performance Commercial Solution

The GoodWe 50kW On-Grid Inverter from the SDT G3 Series is designed for commercial and industrial (C&I) projects that demand high efficiency, safety, and reliability. With its compact design, ultra-low noise, and advanced monitoring features, it’s the perfect choice for large-scale solar installations.

🔹 Key Features

• Massive Power Output: 50,000W nominal capacity.

• High Efficiency: Up to 98.7% max. efficiency for superior energy yield.

• Multiple MPPTs: 4 MPPTs with 2 strings each for flexible system design.

• Smart Oversizing: Supports 180% PV oversizing & 21A per string.

• Quiet Operation: Less than 50dB noise, ideal for schools, hospitals, and offices.

• Durable Build: IP66 ingress protection ensures performance in harsh outdoor environments.

• Advanced Safety: Built-in Type II SPD (AC & DC), and multiple integrated protection functions.

• Smart Monitoring: String-level monitoring with WiFi, LAN, RS485, and Modbus-TCP/RTU compatibility.

🔹 Technical Specifications

• Rated Output Power: 50kW

• Max. Efficiency: 98.7%

• MPPT Voltage Range: 140–1000V

• Max. DC Input Current (per MPPT): 40A

• Max. Output Current: 75.7A @ 380Vac

• Protection Level: IP66

• Dimensions: 646 × 484 × 230 mm

• Weight: 33 kg

✅ Why Choose GoodWe 50kW SDT G3?

With a perfect balance of efficiency, safety, and reliability, the GoodWe 50kW inverter ensures long-term returns on your solar investment. Whether you’re powering a factory, school, hospital, or commercial building, this inverter is engineered to deliver maximum performance with minimum hassle.
