GoodWe 80kW On-Grid Inverter G3 Series – High Performance, IP66 Protection, 5-Year Replacement Warranty (Extendable)

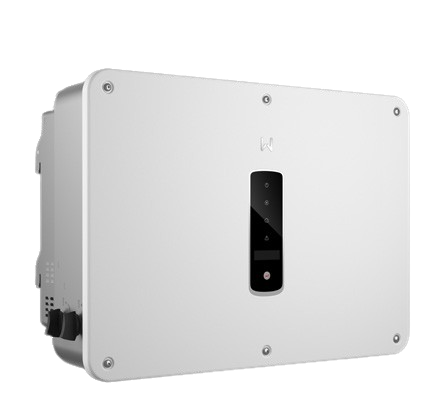

GoodWe SMT Series – 80kW Three Phase Inverter

Model: GW80K-SMT

Key Specifications:

Output Power: 80 kW

AC Overload Capacity: Up to 110% (88 kW)

Max. Efficiency: 98.6%

Max. DC Input Voltage: 1100V

MPPT Range: 180 ~ 1000V

Start-up Voltage: 200V

Number of MPPTs: 6

Strings per MPPT: 2

Max. Input Current per MPPT: 42A

Max. Short Circuit Current per MPPT: 52.5A

Nominal AC Grid Voltage: 220 / 380V, 230 / 400V (3L / N / PE or 3L / PE)

Nominal AC Frequency: 50 / 60 Hz

Max. Output Current: 128A

Ingress Protection: IP66 (Outdoor ready)

Cooling: Smart Fan Cooling

Weight: 64 kg

Dimensions: 700 × 550 × 260 mm

Features & Benefits:

High Power Density: Designed for large commercial and industrial (C&I) applications.

Flexible Design: Compatible with the latest high-power PV modules (182/210mm).

Superior Safety: Type II surge protection on both AC & DC; optional AFCI for arc fault protection.

Smart Monitoring: Supports RS485, WiFi, LAN, and 4G with Modbus protocol integration.

Durability: Operates reliably between -30°C to +60°C and up to 4000m altitude.

Future-Ready: Options include remote shutdown, PID recovery, and reactive power support at night.

Warranty

The GoodWe GW80K-SMT inverter comes with a 5-year standard replacement warranty, with options for extended warranty.
